Description

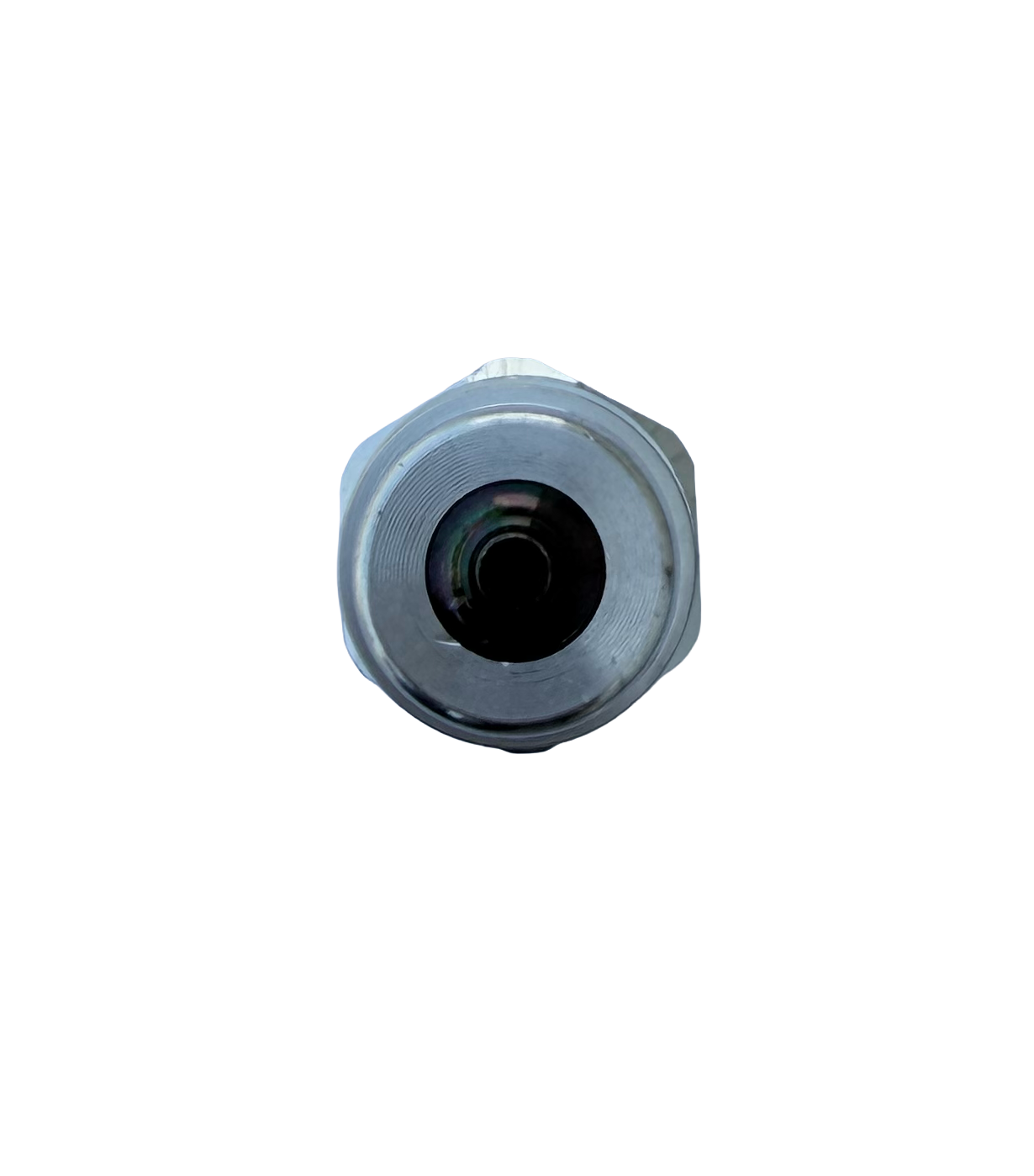

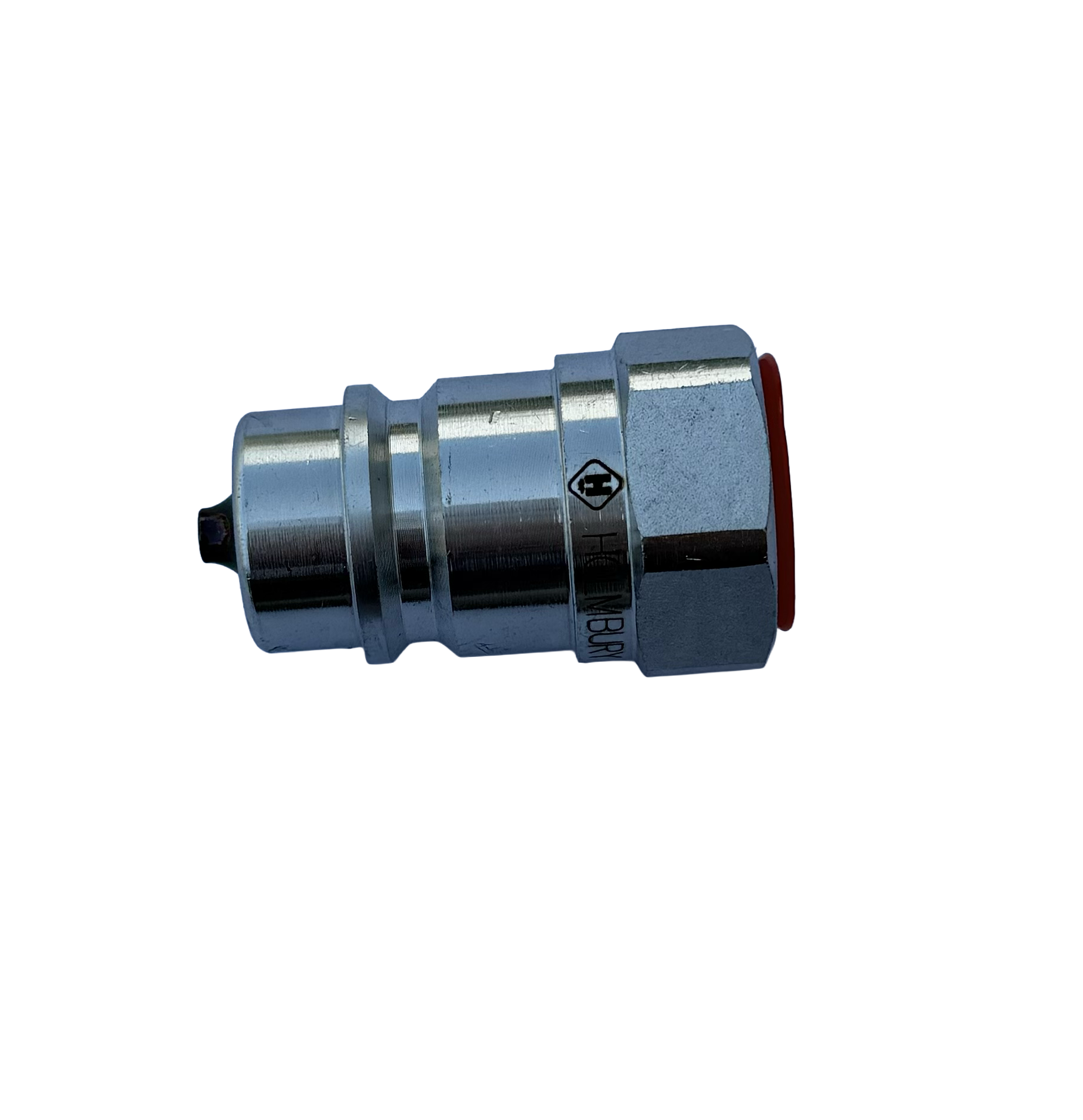

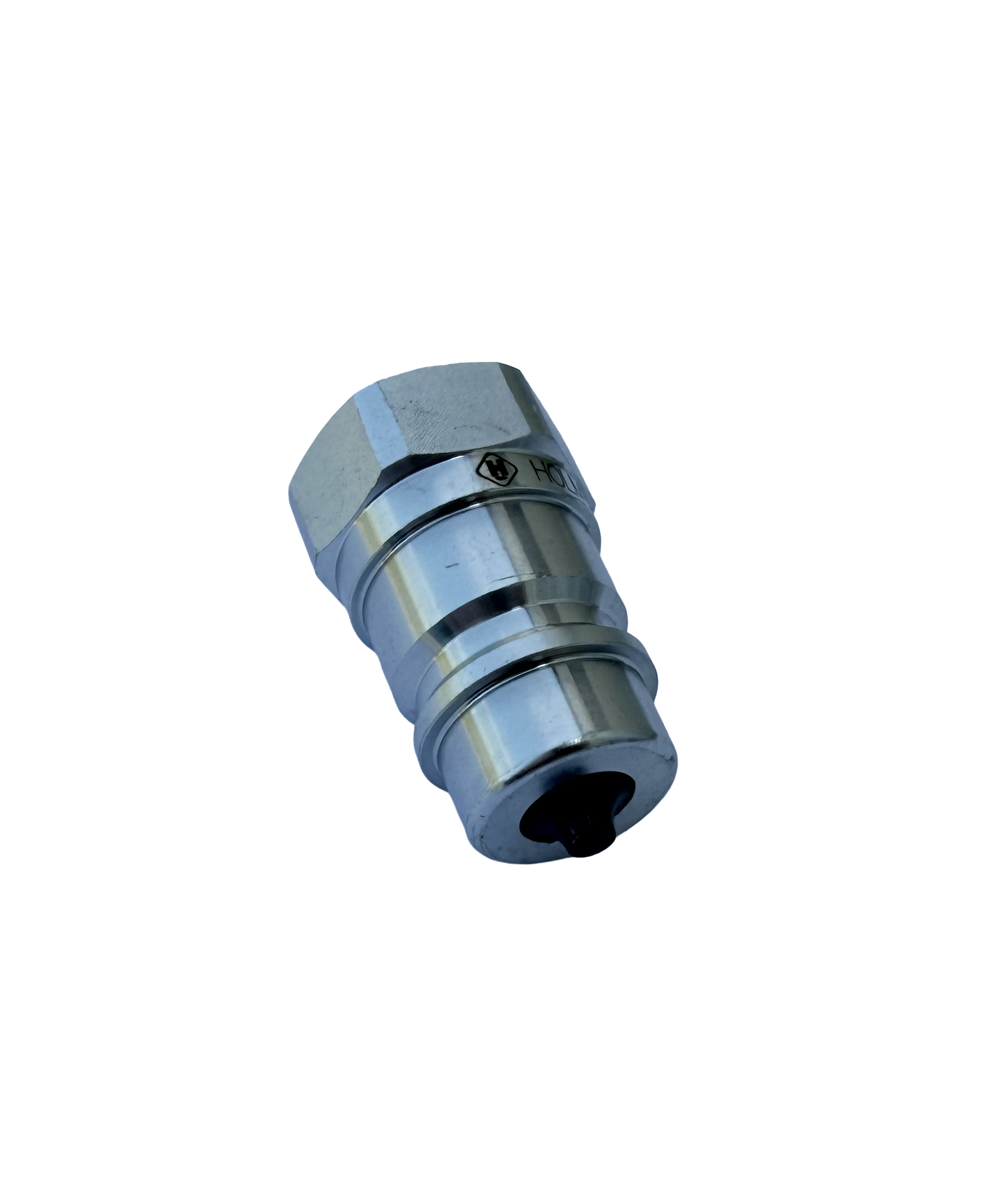

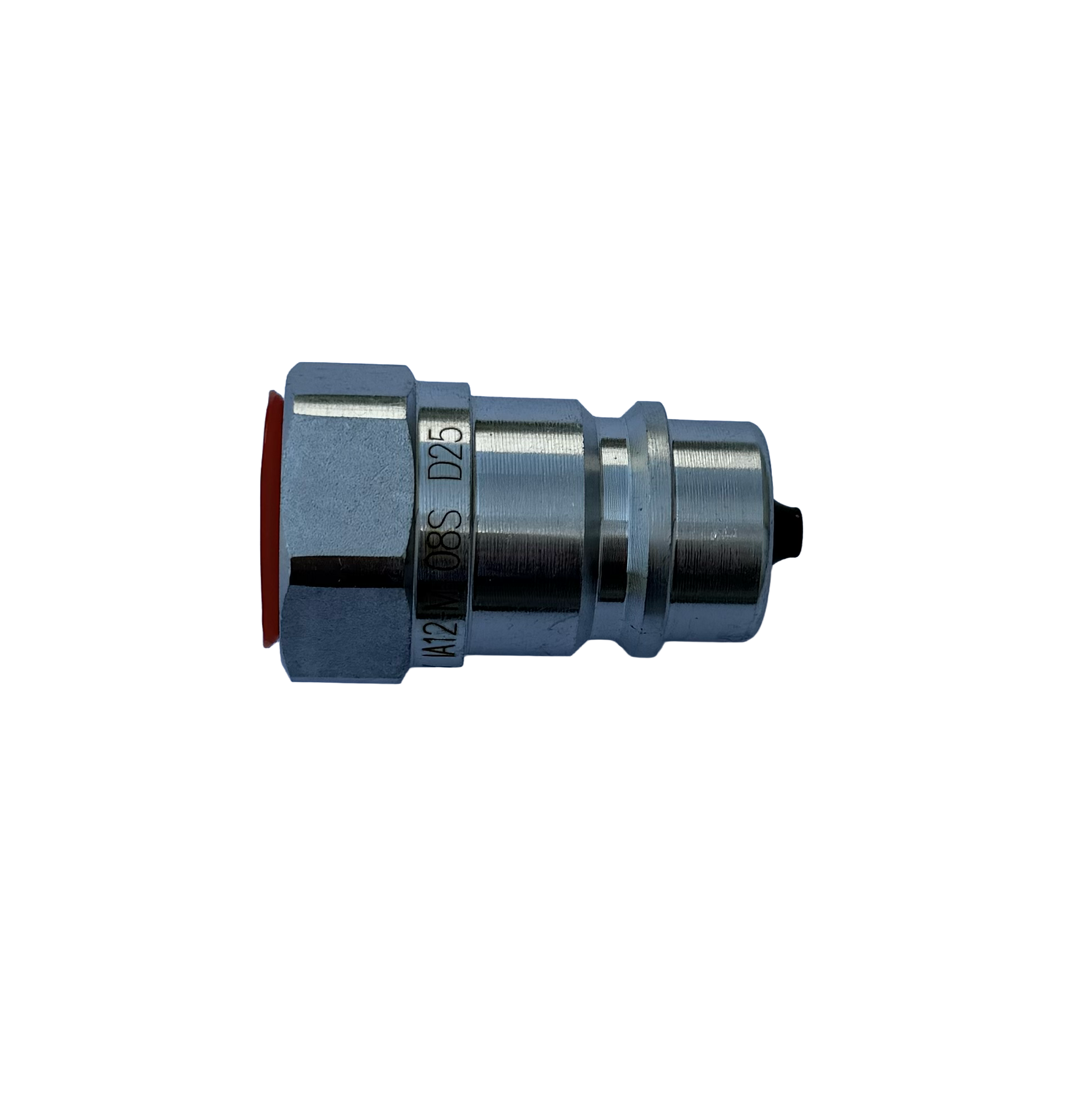

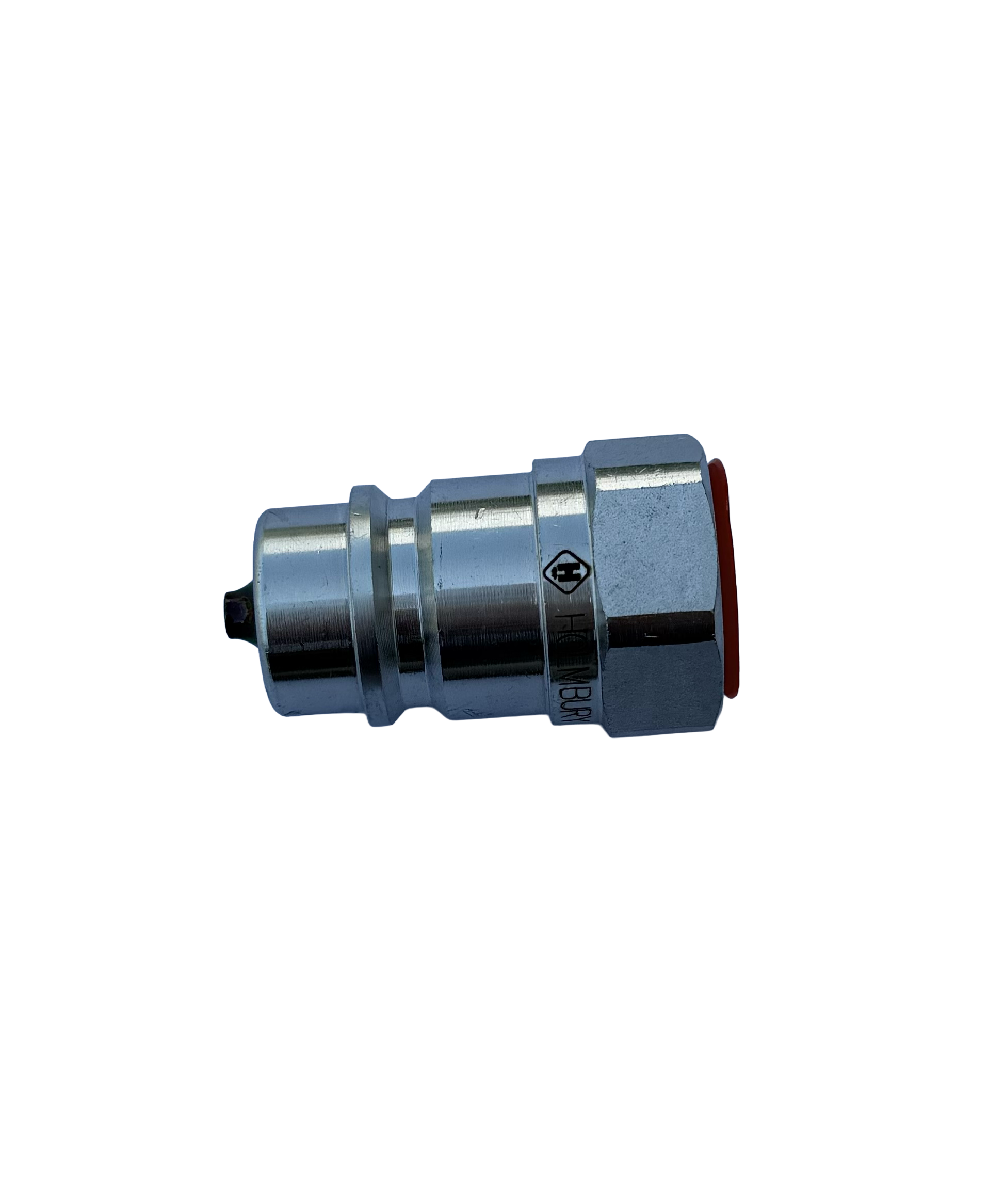

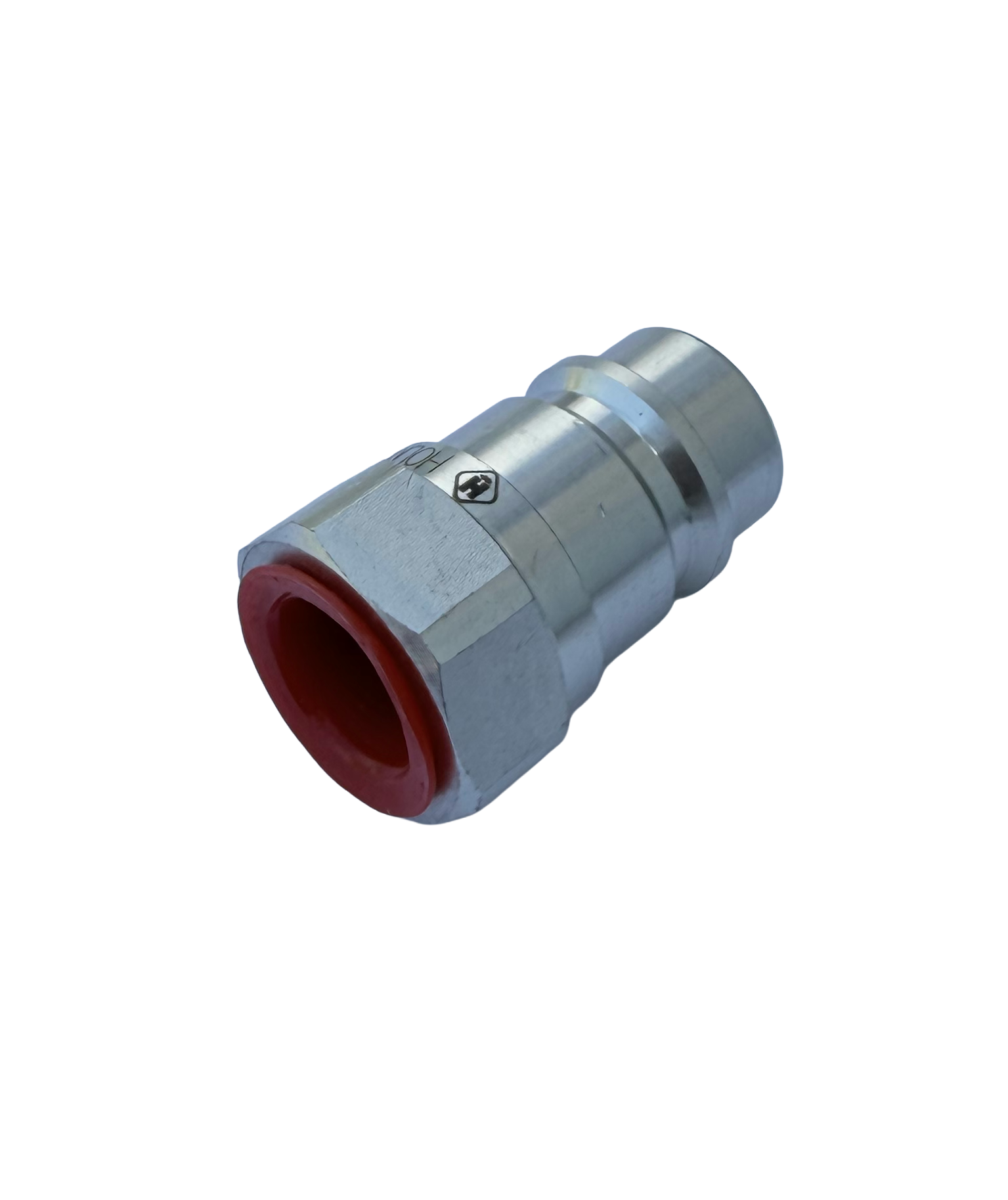

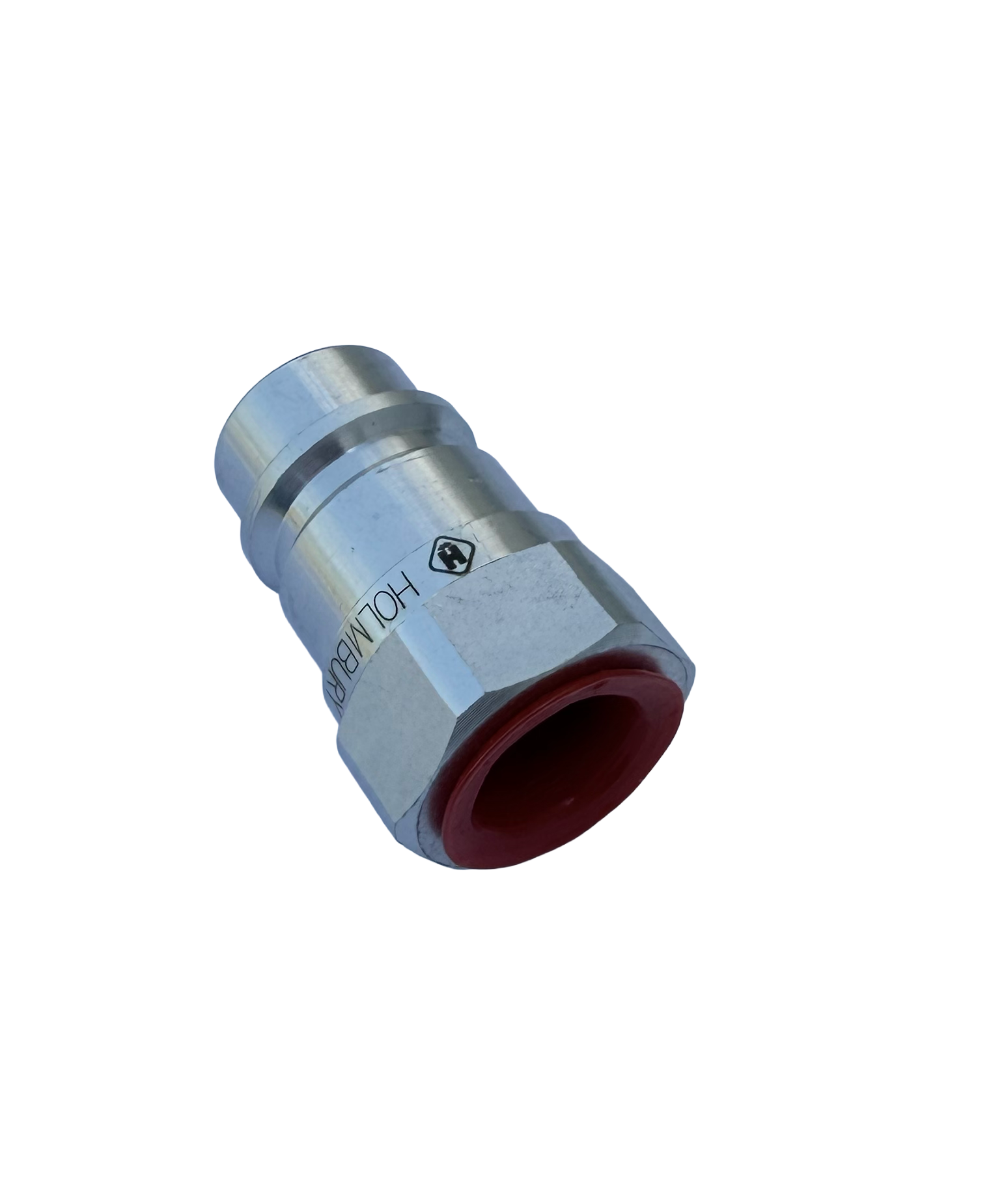

ISO 7241:2014 Male Series A Quick Coupler, 1/2" body, 1/2" SAE
Compatible with: IA12-M-08S, FD76-1010-08-10, 8010-15P, AG4OF4-PV, NV 12 SAE M, M.IR 12V SAE, NV-08-08-N-SAE, S71-15
| Specifications | |
| Thread Size | 1/2" SAE |
| Hex Size | 30MM |
| Male Tip Diameter | 20.5MM |
| Mfr Part Number | IA12-M-08S |
| Pressure Rating | 4640 PSI |
| Optimum flow rating | 14-21 GPM |
