Koyker K5 Loader Lift ("Hi-Lift") Cylinder - 3.0" Bore (1.75" Shaft) - 650844

SKU: K650844
(0)

PN#: 650844 Koyker Cylinder Optional "Hi-Lift" Cylinder for K5 Bore: 3.0" Barrel OD: 3-3/8" Shaft diameter: 1-3/4" Retracted Length (measured center-of-pin to center-of-pin): 46.375" Extended Length (measured center-of-pin to center-of-pin): 85.625" Stroke (measured center-of-pin to center-of-pin): 39.250"

*Designed for seamless compatibility with Koyker equipment, these are premium non-OEM replacement components.

$1,330.00 USD

We're here to help, ask an expert!

Email 605-951-0167
Fast & Reliable Shipping
100% secure payments
Expert Support
  • SKU K650844
  • Manufacturer Koyker Mfg
  • Koyker Loader Model K5
  • Koyker OEM Number 650844

Description

Part Number: 650844

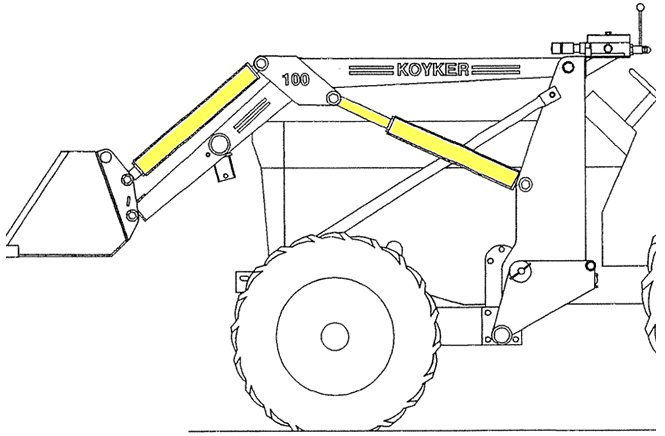

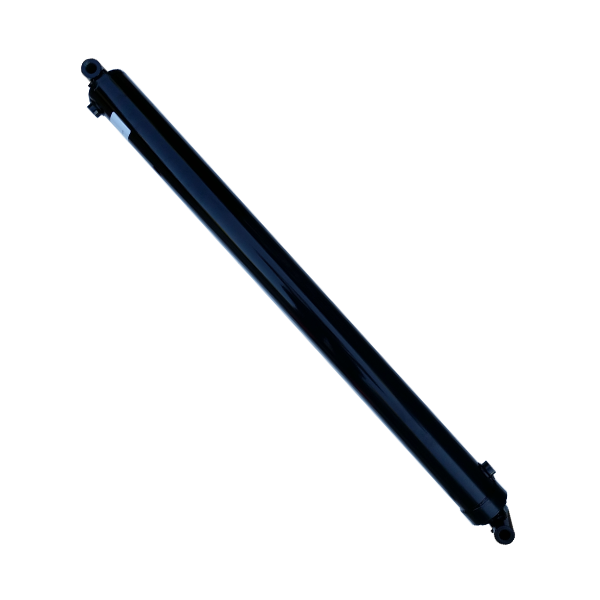

Optional Koyker K5 Boom Cylinder
"Hi-Lift" cylinder with 3.0-inch Bore
Bore (barrel inside diameter): 3.0"

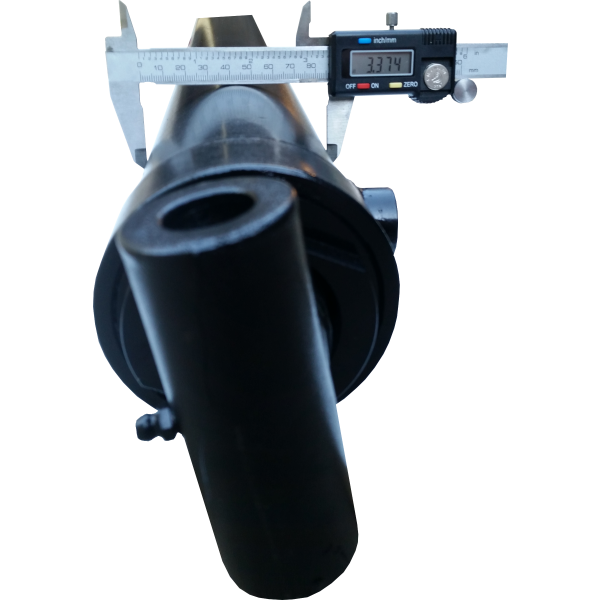

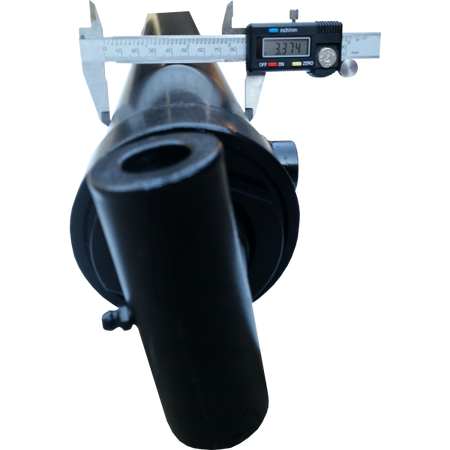

Barrel OD (outside diameter): 3-3/8"

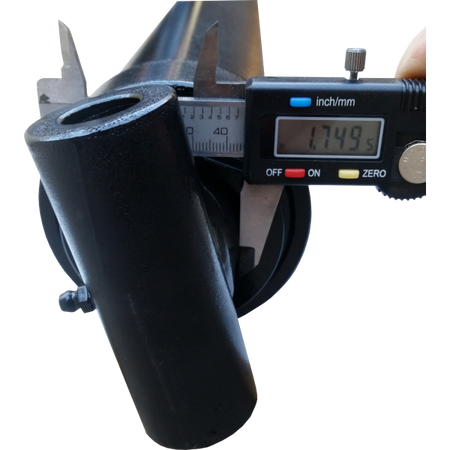

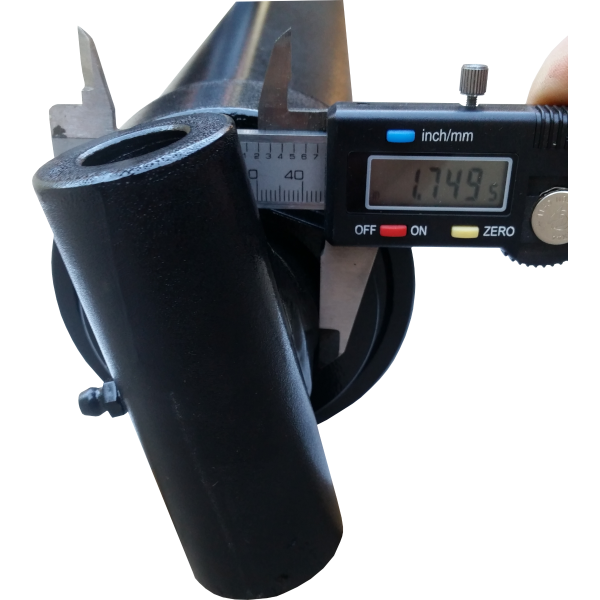

Shaft diameter: 1-3/4"
Retracted Length: 46.375 inches
Extended Length: 85.625 inches
Stroke: 39.250 inches
