Koyker 110 Front-End Loader Parts

Select Koyker 110 Loader Parts Below:
NOTE: 110 was manufactured with two different size cylinders:

1-3/4" Barrel ID (2-1/8" Barrel OD)
2.0" Barrel ID (2-3/8" Barrel OD)

Grouped product items
Image	Product Name	Qty
	K663304 - Rebuild Kit for 1-3/4" Koyker Cylinder (for Barrel ID 1-3/4" - Barrel OD 2-1/8") K663304 $47.00
	Hydraulic Cylinder Rod Seal Install Tool - Small Size - 0.7" up to 1.187" Shaft Diameter IT100 $50.00
	Rebuild Kit for Koyker Cylinders with 2-3/8" Barrel OD, 2.0" Barrel ID, 1-1/4" Shaft OD - K662051 K662051 $50.00
	Hydraulic Cylinder Seal Install Tool - Medium Size - 1-3/16" up to 2.0" Shaft Diameter seal-install-tool-medium $48.00
	K663305 - Gland Kit for 1.75” ID Koyker Cylinder K663305 $92.00
	K663310 - Gland Kit for 2.0” ID Koyker Cylinder K663310 $105.00
	K663306 - Piston Kit for 1.75" Koyker Cylinders K663306 $72.00
	K663311 - Piston Kit for 2.0" Koyker Cylinders K663311 $90.00
	Rubber Boot Cover for Small Koyker Joystick (Loaders 50 - 345) - K664541 K664541 $35.00
	Hydraulic Valve with Joystick for Compact and Utility Tractors - PN# 673010C 673010C Assembled $375.00
	Koyker 110 LH Lift Cylinder - 1-3/4" Bore - 655010 K655010 $435.00

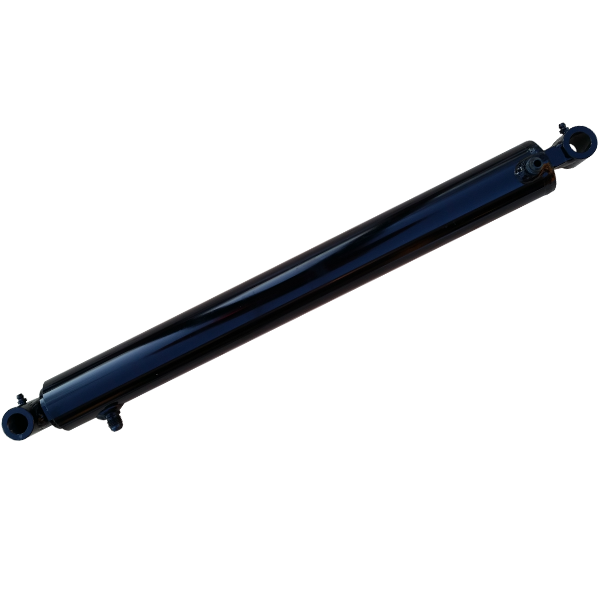

	Koyker 110 RH Lift Cylinder - 1-3/4" Bore - 655016 K655016 $430.00

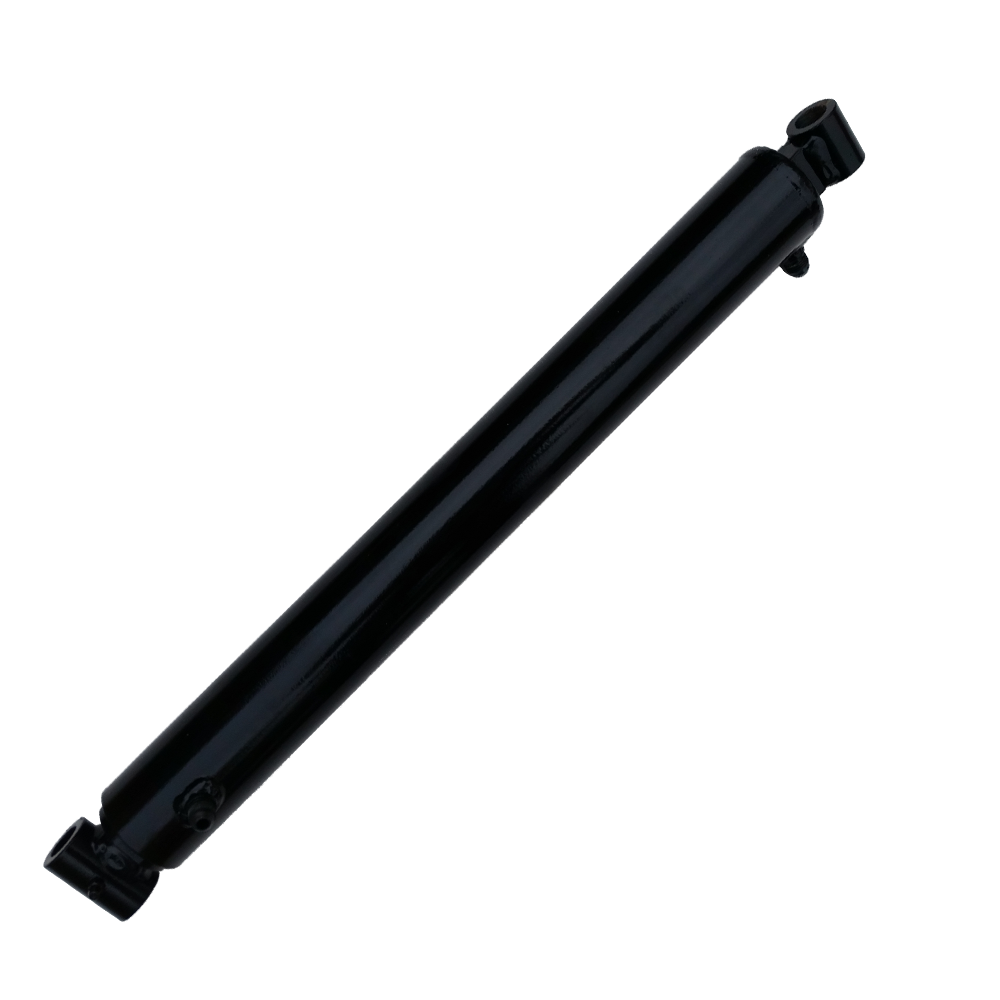

	Koyker 110 LH Lift Cylinder - 2.0" Bore - 654946 K654946 $690.00
	Koyker 110 RH Lift Cylinder - 2.0" Bore - 654942 K654942 $680.00
	Koyker 110 Bucket Cylinder - 1-3/4" Bore - 655000 K655000 $465.00
	K654982 - 2.0" Bucket Cylinder for Koyker 110 Loader K654982 $615.00
	Koyker 110 Lift Cylinder Shaft (for Cylinder with 1-3/4" Bore) - 655014 K655014 $125.52
	Koyker 110 Lift Cylinder Shaft (for Cylinder with 2.0" Bore) - K654950 K654950 $160.00

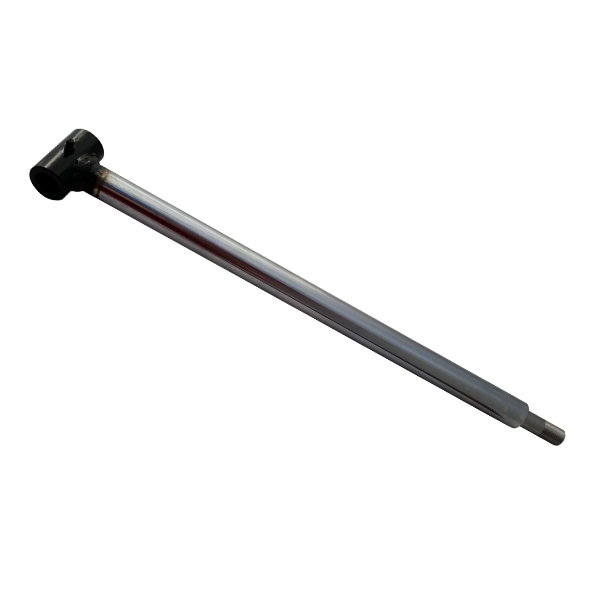

	Koyker 110 Bucket Cylinder Shaft (for Cylinder with 1-3/4" Bore) - 655002 K655002 $115.13
	Koyker 110 Bucket Cylinder Shaft (For Cylinder with 2-3/8" Barrel OD, 2.0" Barrel ID, 1/1-4" Shaft OD) - K653909 K653909 $140.00
	18" Hydraulic Hose for Koyker 110 Loader - 654692 K654692 $39.00
	26" Hydraulic Hose for Koyker Loaders - From Valve to Hard Lines - 668819 K668819 $40.00

Details

Downloadable Koyker 110 Front-End Loader Manual

Koyker 110 Loader Parts

Parts for Koyker 110 Front End Loader

Koyker 110 Loader Packing Kits:

1-3/4" Packing (Rebuild) Kit: K663304
2.0" Packing (Rebuild) Kit: K662051

Koyker 110 Loader Aluminum Glands (Plugs):

1-3/4" Aluminum Gland (with seals assembled on it): K663305
2.0" Aluminum Gland (with seals assembled on it): K663310

Koyker 110 Loader Aluminum Piston (Plunger):

1-3/4" Aluminum Piston (with assembled seals): K663306
2.0" Aluminum Piston (was assembled seals): K663311

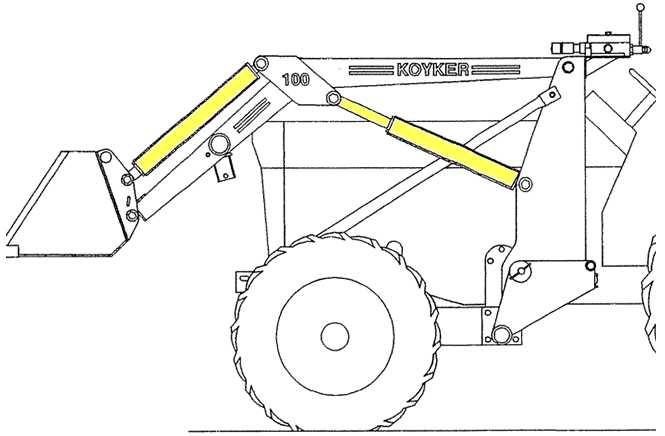

Koyker 110 Loader Cylinders (1-3/4" bore - 2-1/8" barrel OD):

LH Lift Cylinder (1-3/4" bore): 655010
RH Lift Cylinder (1-3/4" bore): 655016
Tilt Cylinder (1-3/4" bore): 655000

Koyker 110 Loader Cylinders (2.0" bore - 2-3/8" barrel OD):

LH Lift Cylinder (2.0" bore): 654946
RH Lift Cylinder (2.0" bore): 654942
Tilt Cylinder (2.0" bore): 654982

Koyker 110 Loader Cylinder Chrome Shafts (Rams) for 1.75" bore cylinders:
NOTE: The same chrome shaft is used with both LH and RH lift cylinders that have the same bore.

Chrome shaft for lift cylinders with 1.75" bore: 655014
Chrome shaft for bucket cylinders with 1.75" bore: 655002

Koyker 110 Loader Cylinder Chrome Shafts (Rams) for 2.0" bore cylinders:
NOTE: The same chrome shaft is used with both LH and RH lift cylinders that have the same bore.

Chrome shaft for lift cylinders with 2.0" bore: 654950
Chrome shaft for bucket cylinders with 2.0" bore: 653909

Koyker 110 Loader Hydraulic Hoses:

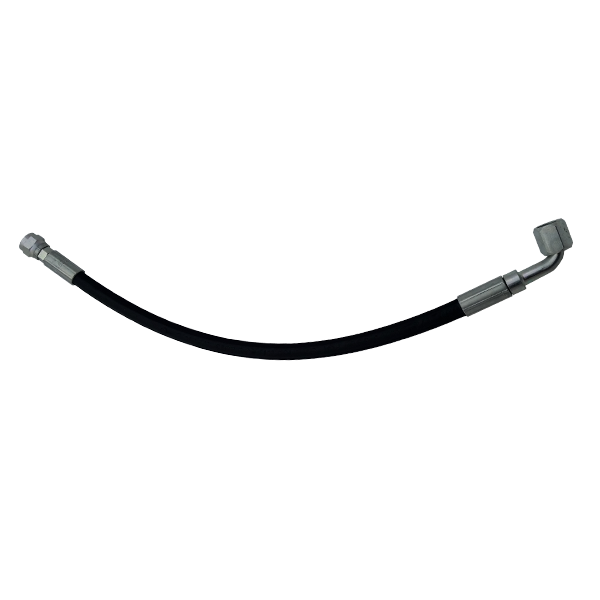

There is only one hose part number that is used for EXTEND and RETRACT on all the Koyker 110 cylinders: PN# 654692. This is an 18-inch hydraulic hose.
The hose going from the valve to the hard lines on the loader: PN# 668819. This is a 26-inch hydraulic hose. The same hose is used for each of the ports on the valve - raise, lower, dump, and retract.

Koyker 110 Loader Control Valve with Joystick:

PN# 673010. This is a dinoil, 2-function valve. The kit includes: valve, joystick (not installed), PBY sleeve and closed center plug (not installed). The valve is shipped open-center. The sleeve or closed center plug can be installed to make it power beyond or closed center. Installation instructions are included with the valve kit.
