Koyker 110 Front-End Loader Parts

Downloadable Koyker 110 Front-End Loader Manual

Koyker 110 Loader Parts

Parts for Koyker 110 Front End Loader

Koyker 110 Loader Packing Kits:

• 1-3/4" Packing (Rebuild) Kit: K663304
• 2.0" Packing (Rebuild) Kit: K662051

Koyker 110 Loader Aluminum Glands (Plugs):

• 1-3/4" Aluminum Gland (with seals assembled on it): K663305
• 2.0" Aluminum Gland (with seals assembled on it): K663310

Koyker 110 Loader Aluminum Piston (Plunger):

• 1-3/4" Aluminum Piston (with assembled seals): K663306
• 2.0" Aluminum Piston (was assembled seals): K663311

Koyker 110 Loader Cylinders (1-3/4" bore - 2-1/8" barrel OD):

• LH Lift Cylinder (1-3/4" bore): 655010
• RH Lift Cylinder (1-3/4" bore): 655016
• Tilt Cylinder (1-3/4" bore): 655000

Koyker 110 Loader Cylinders (2.0" bore - 2-3/8" barrel OD):

• LH Lift Cylinder (2.0" bore): 654946
• RH Lift Cylinder (2.0" bore): 654942

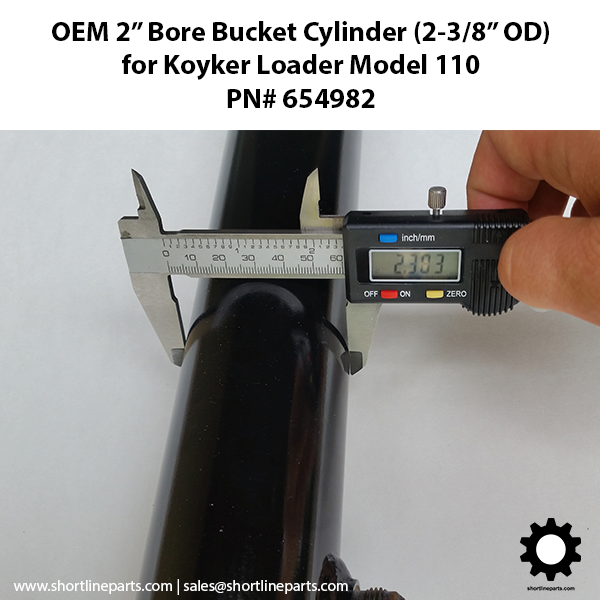

• Tilt Cylinder (2.0" bore): 654982

Koyker 110 Loader Cylinder Chrome Shafts (Rams) for 1.75" bore cylinders:
NOTE: The same chrome shaft is used with both LH and RH lift cylinders that have the same bore.

• Chrome shaft for lift cylinders with 1.75" bore: 655014
• Chrome shaft for bucket cylinders with 1.75" bore: 655002

Koyker 110 Loader Cylinder Chrome Shafts (Rams) for 2.0" bore cylinders:
NOTE: The same chrome shaft is used with both LH and RH lift cylinders that have the same bore.

• Chrome shaft for lift cylinders with 2.0" bore: 654950
• Chrome shaft for bucket cylinders with 2.0" bore: 653909

Koyker 110 Loader Hydraulic Hoses:

• There is only one hose part number that is used for EXTEND and RETRACT on all the Koyker 110 cylinders: PN# 654692. This is an 18-inch hydraulic hose.
• The hose going from the valve to the hard lines on the loader: PN# 668819. This is a 26-inch hydraulic hose. The same hose is used for each of the ports on the valve - raise, lower, dump, and retract.

Koyker 110 Loader Control Valve with Joystick:

• PN# 673010. This is a dinoil, 2-function valve. The kit includes: valve, joystick (not installed), PBY sleeve and closed center plug (not installed). The valve is shipped open-center. The sleeve or closed center plug can be installed to make it power beyond or closed center. Installation instructions are included with the valve kit.

Measurement Conversion Table for Koyker 110 Cylinders and Seal Kits:

NOTE: To find the inside diameter (ID) of the barrel on a Koyker cylinder, subtract 3/8" from the barrel's outside diameter (OD).

How to easily install cylinder rod seal kits:

How to rebuild your Koyker loader cylinder:

Measuring to find the correct kit:
