Description
The Cross SBA valve fits these John Deere tractor models: 4010, 4020, 4030, 4040, 4050, 4055, 4230, 4240, 4250, 4255, 4320, 4350, 4430, 4440, 4450, 4455, 4520, 4555, 4560, 4630, 4640, 4650, 4755, 4760, 4840, 4850, 4955, and 4960.
Alternate part numbers for this valve: 143799, BA2A1XAG3EA0, SBAF2. The part number stamped on the base of the current casting is --23--1Z0202; however, this is not the valve part number. This is the casting part number, and will be found on other Cross valves that use the same casting body but have different specs.

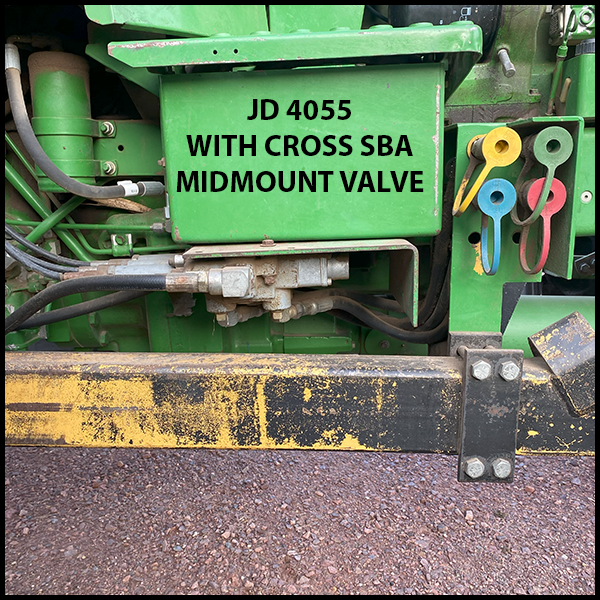

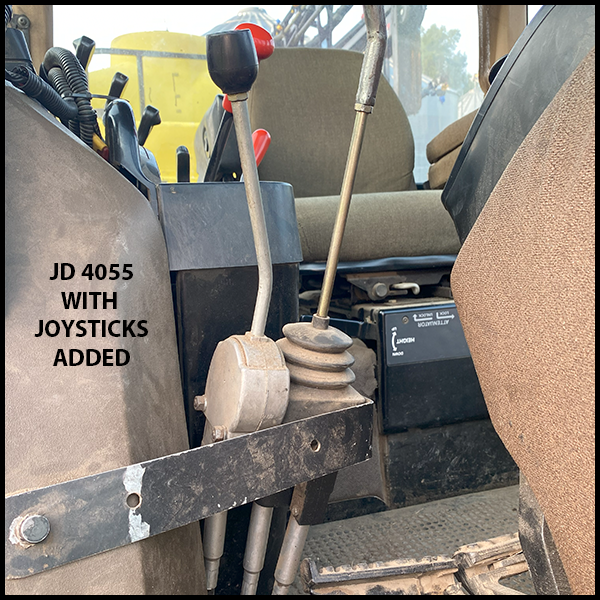

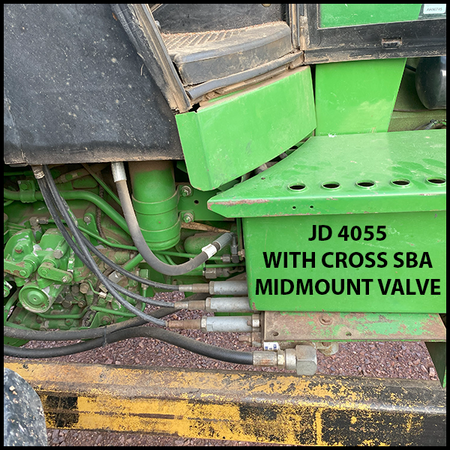

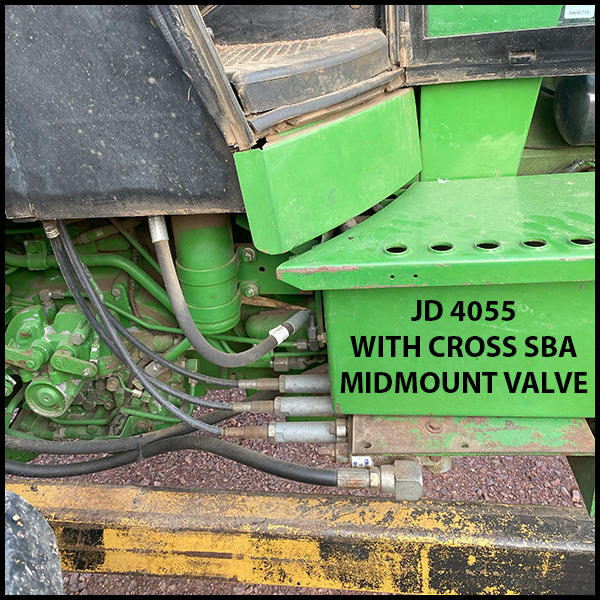

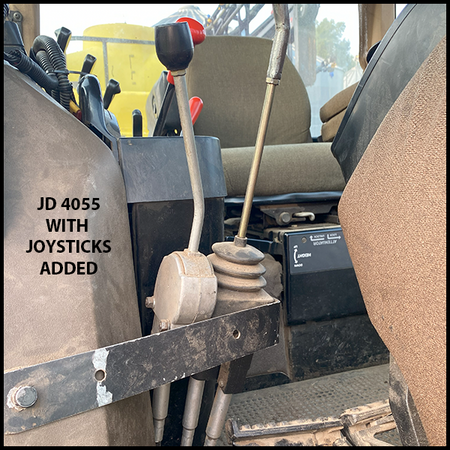

The pictures below show the 3-function Cross SBA valve and joystick installed on a John Deere 4055 tractor.

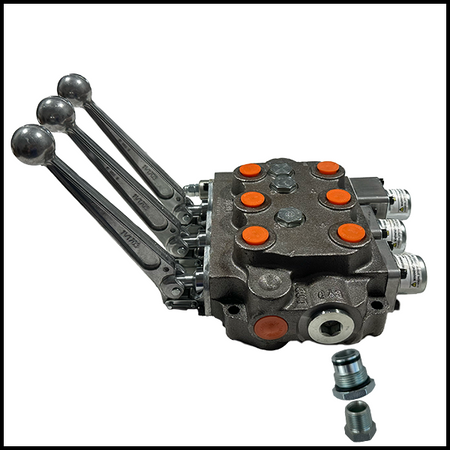

The images below show the 3-function Cross SBA valve with levers, typically used on open station JD 4020 tractors (or any 4000 series tractors without a cab):
The images below show the steps for converting the Cross SBA valve to closed center (this valve ships open center):

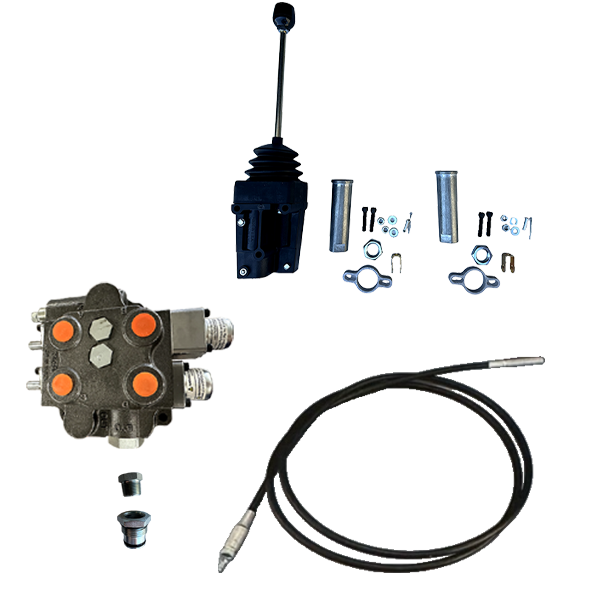

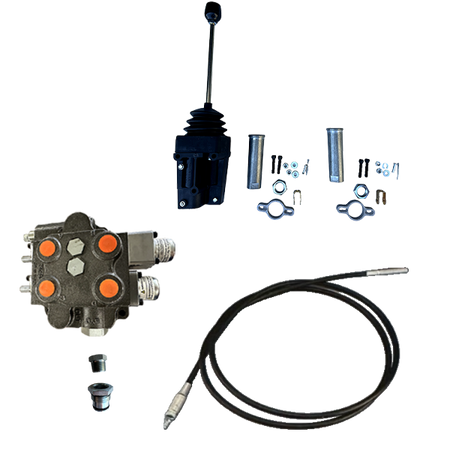

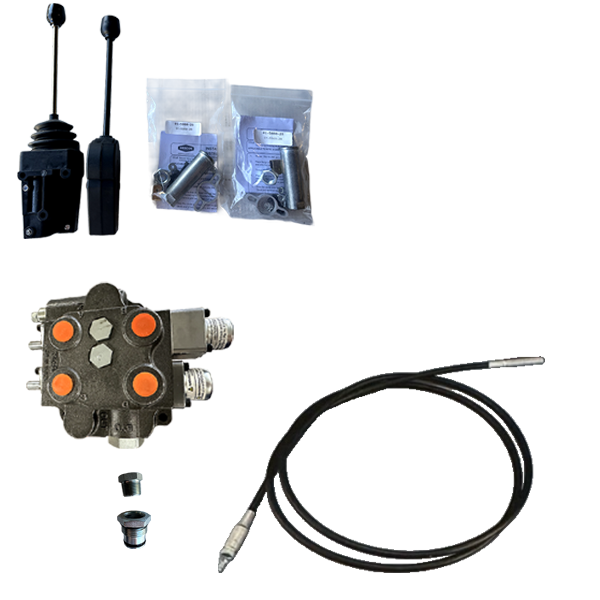

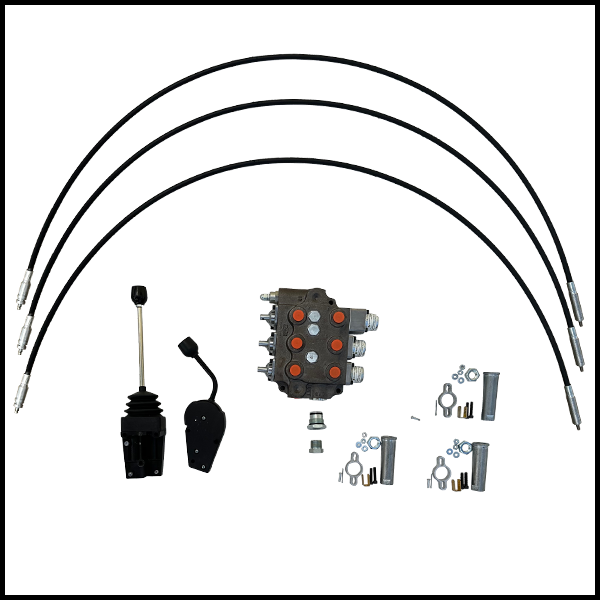

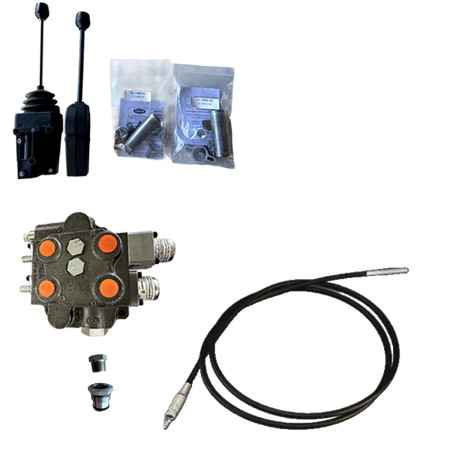

The images below show the individual items that are included in the 3-function starter joystick kit. The starter kit includes the joystick and lever controls, the control cables, the midmount closed center control valve, and the cable connection hardware. Items that need to be added to complete the installation: power beyond block to access tractor hydraulics, hoses, mounting brackets, couplers, and any needed hydraulic adapters.
